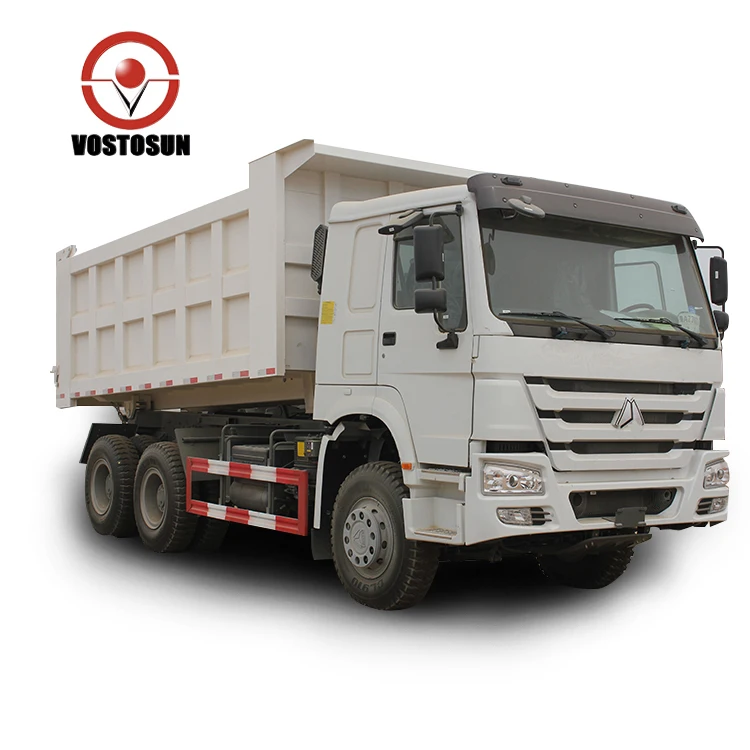

ZZ3257N3647A 20 Drive 30 ton mining howo dump truck for sale

FOB Reference Price:Get Latest Price
$3,000.00 - $100,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZZ3257N3647A
Report Suspicious Activity
Overview
Quick Details
Drive Wheel:
Other
Capacity (Load):
21 - 30t
Horsepower:
Other
Condition:
New
Transmission Type:
Manual
Emission Standard:
Other
Fuel Type:
Diesel
Gross Vehicle Weight:
25000
Place of Origin:
Shanghai, China
Brand Name:
howo
Dimensions (L x W x H) (mm):
8145*2496*3170
Fuel tank capacity:
300L
Service quality (vehicle/chassis):
12020/8630kg
Total mass:
25000kg
Track (front/back):
2022/1850mm
Minimum ground clearance:
314mm
Maximum speed:
75
Maximum climbing ability:
≥50%
Minimum turning diameter:
14.9m
Container volume:
14.9m3
Container size (length / width / height):
5400/2300/1200 mm
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
customized....
Port
Qingdao port, Shanghai port, Tianjin port, or others as request
Video Description
Product Description



Model

ZZ3257N3647A

Cab

Model

HW76

Type

Extended cab, single sleeper, up and down, front and rear adjustable steering wheel, VDO instrument and control module, double locking structure seat belt, outer sun shield



Engine

Model

WD615.69

Rated power   kW/rpm

247/2200

Maximum torque   Nm/rpm

1350/1300-1600

Displacement            L

9.726

Type

Inline, six-cylinder, two-valve, supercharged intercooler, rear turbocharger

Clutch

Φ430 diaphragm spring clutch, hydraulically assisted by gas. WD615.62, WD615.87 comes standard with 430C, WD615.69 comes with 430B, WD615.47 comes with 430A

Transmission

HW series of 10-speed transmission, transmission-based, secondary box structure, the main box double shaft, deceleration of the planetary box, with power take-off. WD615.62, WD615.87, WD615.69 comes standard with HW15710, WD615.47 comes with HW19710

Front axle

HF9 drum type, rated load 9 tons

Rear drive axle

HC16 double-stage deceleration (central deceleration + wheel deceleration), speed ratio: standard 5.73, optional 4.8

Suspension

The front and rear suspensions are leaf springs, the front suspension is equipped with a shock absorber and a lateral stabilizer, and the rear suspension type is a disconnected balance suspension with a lateral stabilizer.

Steering system

ZF8098 direction machine, ZF steering oil pump, system pressure 18MPa

Braking System

Service brake: Double-circuit pneumatic brake; Parking brake: spring energy storage air brake; Auxiliary brake: Engine exhaust brake. Optional engine EVB, ABS and automatic clearance adjustment arm.

Electrical system

Voltage: 24V; Generator: 1540W; Starter: 24V, 7.5kW; Battery: 2×12V/165Ah

Tires

12.00-20; Optional 11.00-20

Fuel tank capacity                 L

300

Service quality (vehicle/chassis)      kg

12250/8660

Total mass                  kg

25000

Rated contained mass             kg

12620

Dimension(Lx W xH)mm(unloaded)

8145×2496×3170

Chassis dimensions (length × width × height) mm

7215×2496×2985

Wheelbase                   mm

3625+1350

Front suspension/rear suspension (vehicle/chassis)     mm

1500/(1670/740)

Track (front/back)             mm

2022/1850

Minimum ground clearance           mm

314

Approach angle/departure angle (whole vehicle/chassis) °

19/(26/64)

Maximum speed             km/h

75

Maximum climbing ability             %

50

Minimum turning diameter             m

16.3

Container size (length × width × height)   mm

5400×2300×1200

Container volume                m3

14.9


Product Advantages

1.HW76 cab(single sleeping, with air-condition)



2. all-steel forward control,70ºhydraulically tiltable to the front, 2- arm windscreen wiper system with 3 speeds



3.Van body dimensions 8145×2496×3170mm



4.Bottom plate 8mm Van body material Common steel



5.The transit tipper truck works together with the excavators, wheel roaders, track transporter and other machines
