Chinese gold 1200 wet pan mill for mining

FOB Reference Price:Get Latest Price
$6,788.00 - $9,875.00 / Sets | 1 Set/Sets (Min. Order)
Power(W):
11KW
Model Number:
D1200
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Type:
Pan Mill
Motor Type:
AC Motor
Capacity(t/h):
1.5-2 T/H
Place of Origin:
Shanghai, China
Brand Name:
VOSTOSUN
Dimension(L*W*H):
1200*200*80*250±20mm
Weight:
6 ton
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service
Specification:
1200*200*80*250±20
Input size (cm):
30
Rotation speed(r/min):
17-19
Power(kw):
11
Weight (t):
5.5
Capacity (t/h):
1.5-2
Application:
iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore
Color:
Required
Installation:
Engineer's Guidance
Spare parts supplying:
Life Long Provide
Supply Ability
Supply Ability:
60 Set/Sets per Month Chinese gold 1200 wet pan mill for mining
Packaging & Delivery
Packaging Details

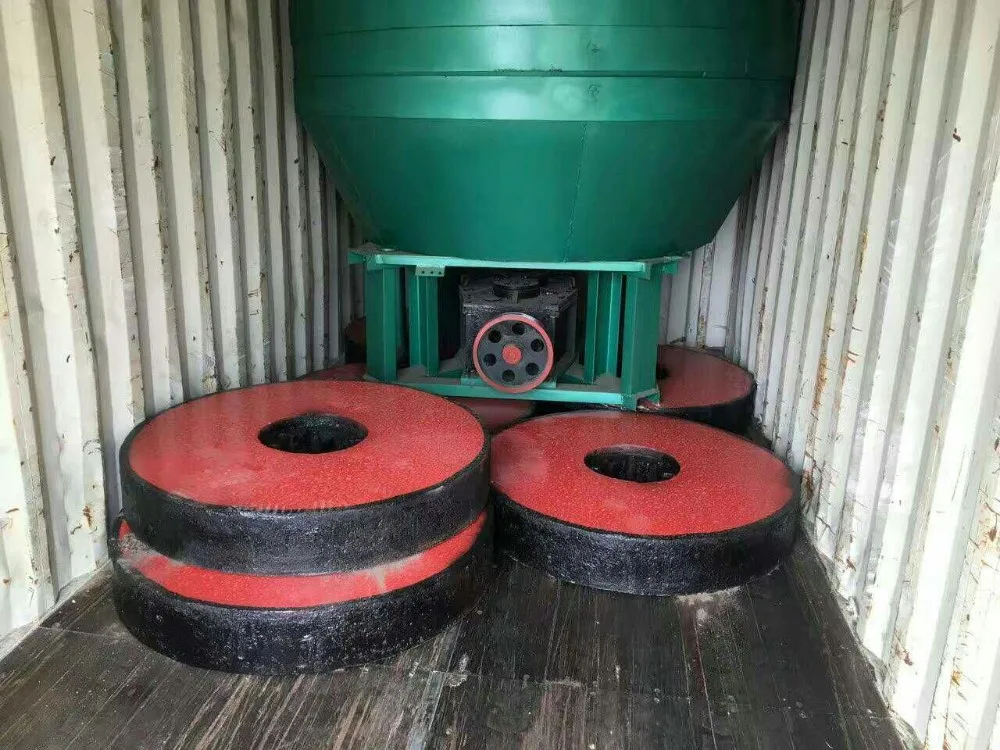

Chinese gold 1200 wet pan mill for mining: Standard packing, spare parts will put into the wooden cases then transport by the container, big model will be nude packing.
Port
Qingdao port, Shanghai port, Ningbo port or as request
Product Description

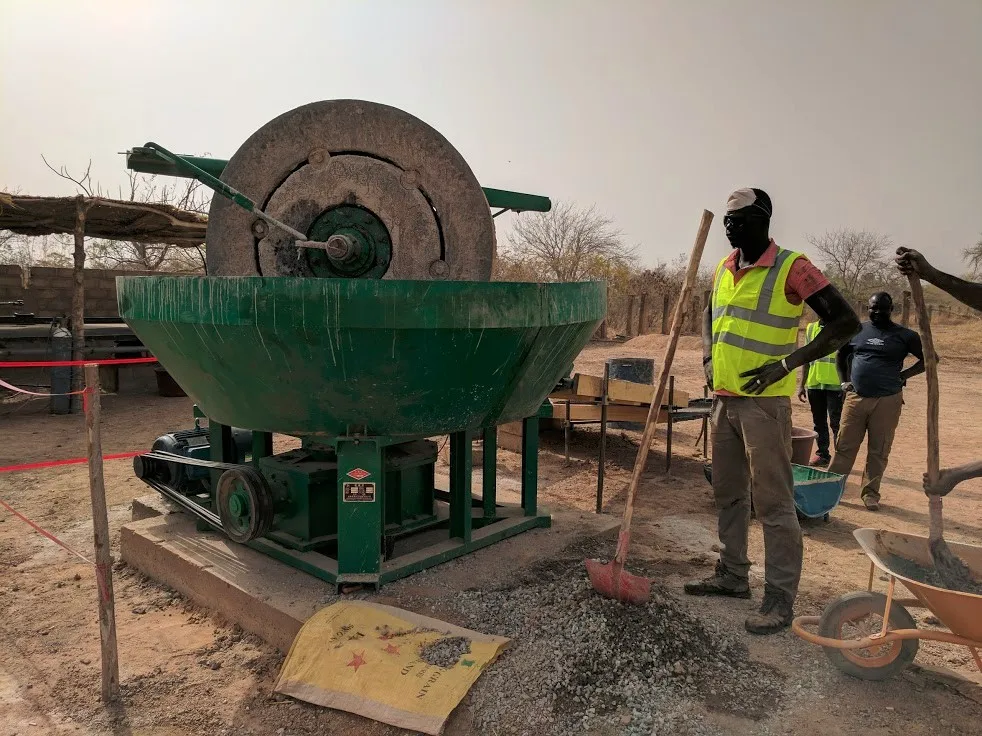

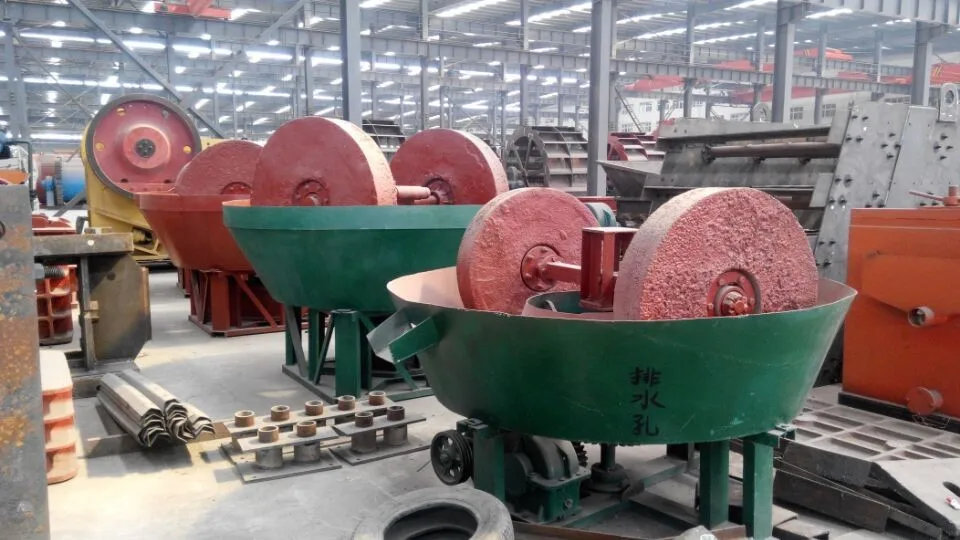

Chinese gold 1200 wet pan mill for mining

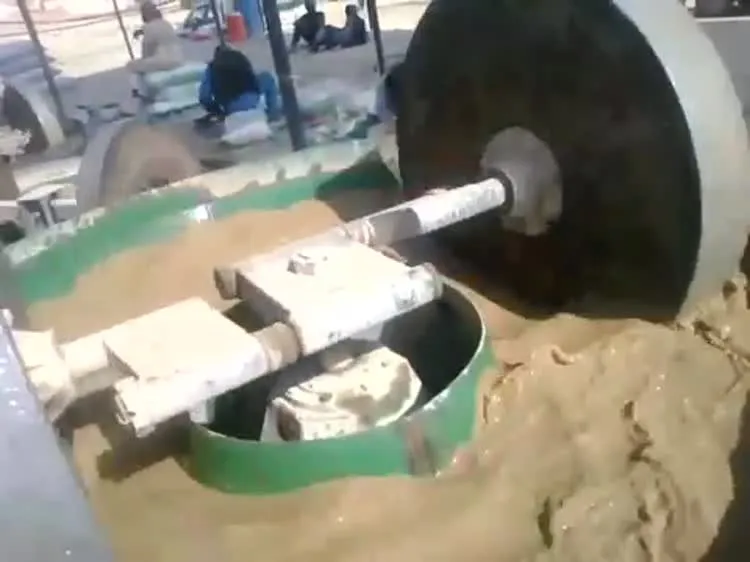

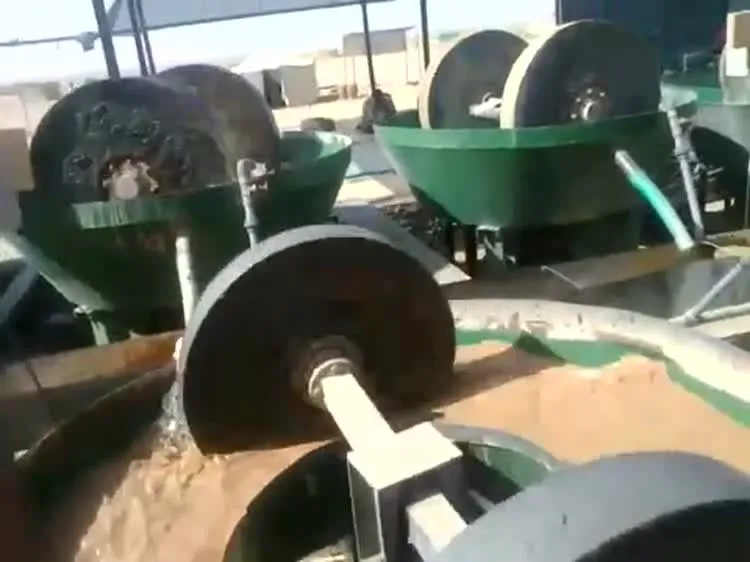

Wet pan mill is widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver. Based on the different structure it is divided into double roller grinding and three roller grinding.  It grinds ores by wheel driving force. firstly, the power is transferred from the motor to the reducer, then to the horizontal shaft, and finally to the grinding wheel; the wheels then rotate anticlockwise.The wheels can revolve around the vertical shaft of the pan mill, at the same time, it can revolve on its own axis, while the grinding base will remain still. The ores are pressed, rubbed and grinded repeatedly.

Advantages of wet pan mill

1) The grinding wheels mix up the ores and produce ore pulp while pressing and rubbing the ores.
2) The ores and water are evenly mixed, which makes the pulp density and other indexes stable.

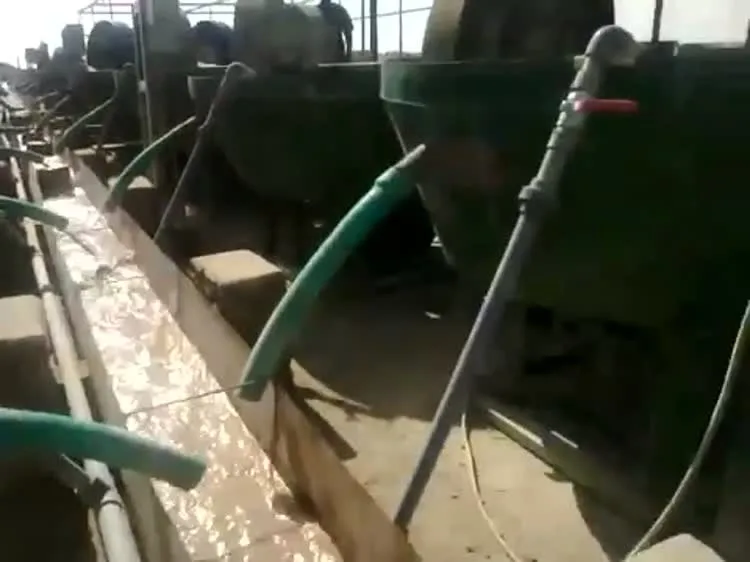

3) After the grinding process, the monomers are taken to the upper surface of the pulp and discharged through the overflow outlet of the water basin. Meanwhile, the coarse ores sink to the bottom of grinding base, being grinded continuously till they reach the required fineness.
4) The screening mesh set up at the overflow outlet of the water basin classifies the ore fineness strictly to avoid the over-grinding and uneven fineness, which helps create better condition for next working process.

Working Principle

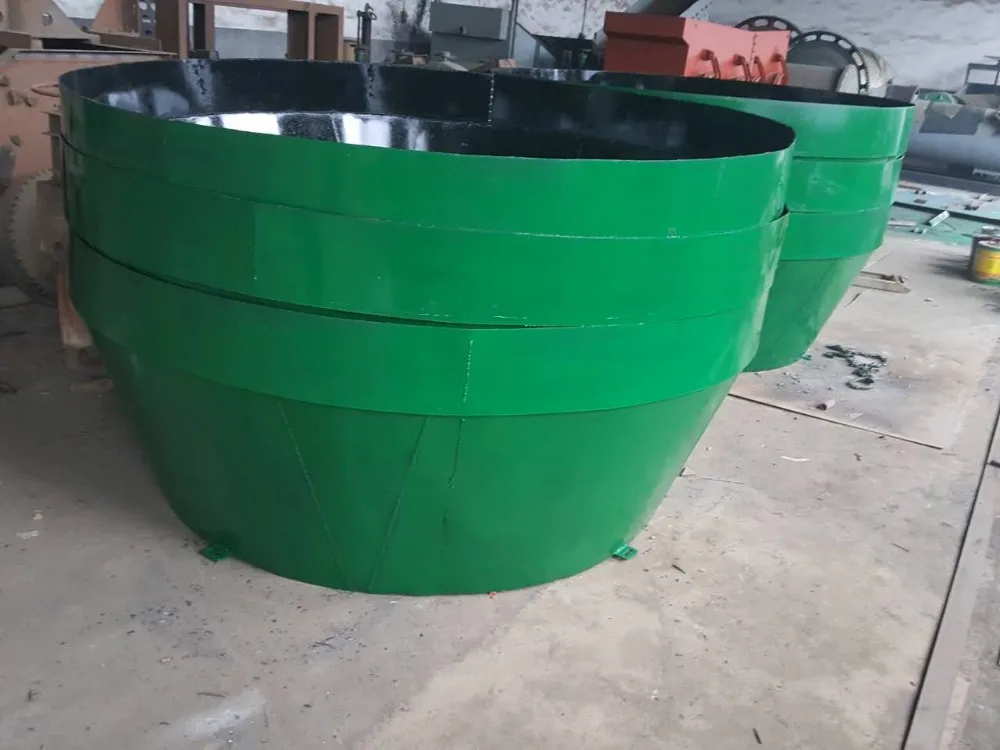

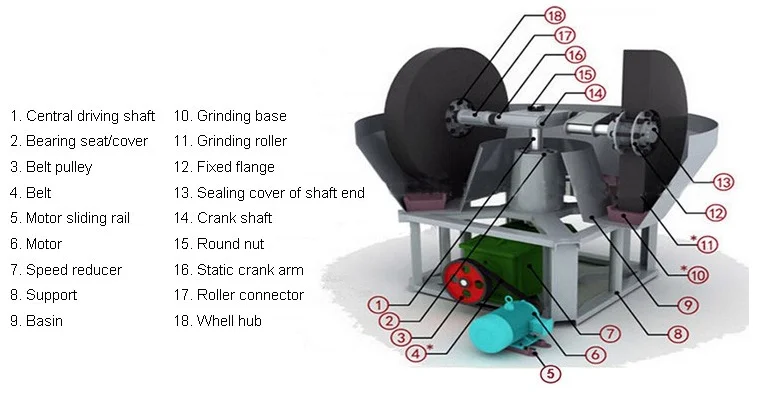

It mainly consists of driving device, frame, water basin, grinding wheels and grinding base, etc.


1) When inputting gold sand into the rolling drum, the rollers compress the sand over and over into tiny particles.

2) Please put in 5 kg mercury at first, the mercury can absorb the gold or other metals.

3) At last, use a high-density red cloth to wrap mercury up.

4) Then squeeze it, the mercury will be pressed out and pure gold stayed.

5) As to the large capacity, we can use mercury shaking machine and mercury steamer to replace the manual work.

Technical Parameters
Model
Specification
input size
Rotation speed (r/min)
Power (kw)
Weight
(t)
Capacity
(t/h)
1600
1600*400*200*500±20
30
20-22
30
14.5
6-10
1500
1500*350*200*460±20
30
20-22
22
13.5
5-8
1400
1400*250*150*350±20
30
16-18
18.5
8.5
3-5
1300
1300*250*150*350±20
30
16-18
15
7.5
2-4
1200
1200*200*80*250±20
30
17-19
11
5.5
1.5-2
1100
1100*200*80*250±20
30
17-19
7.5
5.0
1-1.5
1000
1000*200*80*250±20
30
13-15
5.5
4.5
1
900
900*200*80
30
10-15
5.5
3.0
0.5

Wet pan mill is widely used for selecting ferrous metals, nonferrous metals and nonmetals, as well as precious metals like gold and silver. VOSTOSUN brand wet pan mill Φ1300,Φ 1400,Φ 1500,Φ 1600 model is suitable for selection of iron ore, molybdenum ore ,lead ore ,zinc ore, antimony ore and so on. Φ 900, Φ 1000,Φ 1100,Φ 1200 is suitable for selection of gold ore. we suggest you use a hammer mill crusher or jaw crusher before grinding, it will save grinding time and increse capacity.

Detailed Images

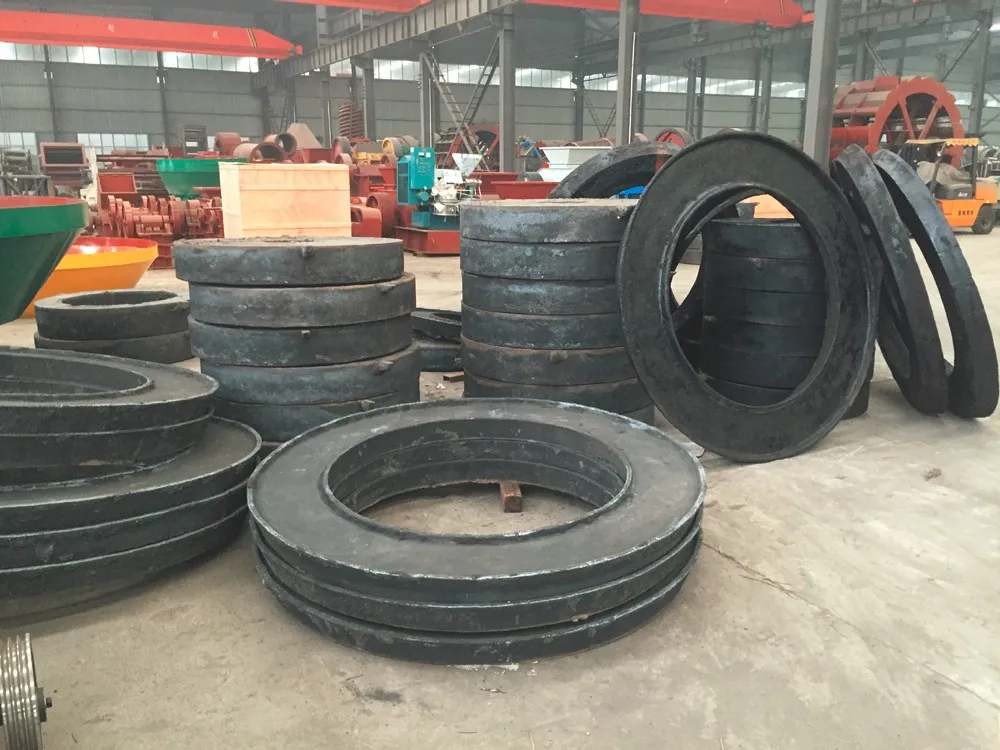

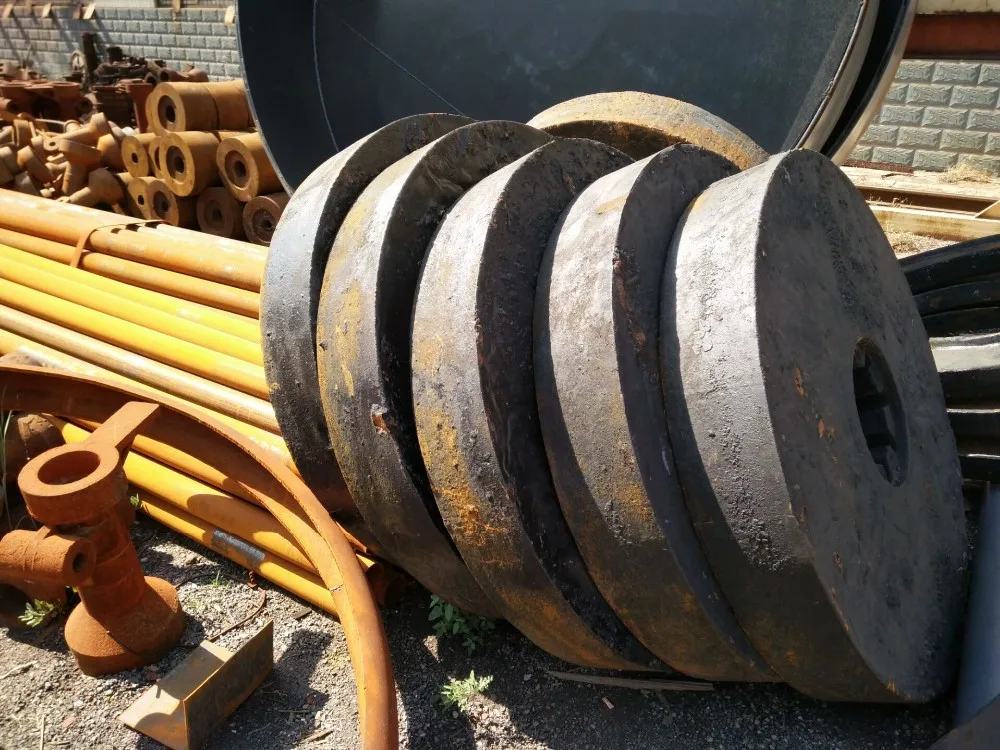

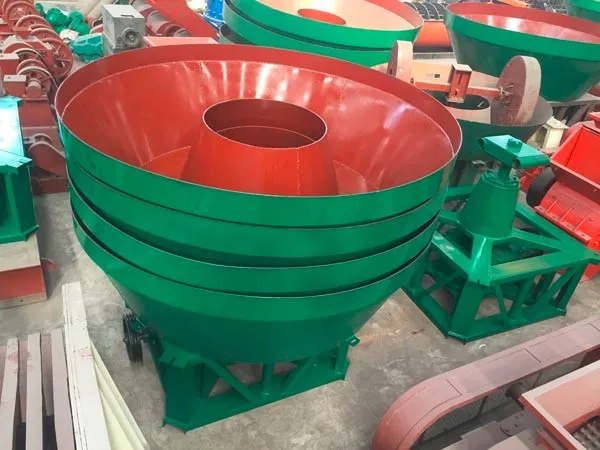

Grinding wheels and grinding base are made of high manganese steel. it is very hard and rigid, using life will be doubled


6 phases motor, can reduce energy consumption


Easy installation and maintenance, small investment, high yield, quick, low-cost production,


Our Service

Pre-Sales Service

1>. Select proper equipment model;
2>. Design and manufacture products according to clients' special requirement;
3>. Arrange for visiting our factory, assist them to handle relative procedure, such as visa.
4>. Make sure goods prepared within delivery time;
5>. Pre-check and accept products ahead of delivery;
6>. Prepare documents required to help customer pass customs clearance.
7>. Help clients to make Project evaluation and feasibility analysis and draft solving plans.

After-Sales Service

1>. Assist clients to prepare for the first construction scheme;

2>. Install, debug and examine the equipment;

3>. Train technical personnel the first-line operators;

4>. Provide technical exchanging


5>. Offer spare parts at a best price for long term.
