Marble quarry diesel 50 ton forklift front loader for sale

FOB Reference Price:Get Latest Price
$25,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Rated Load:
50 tons
Model Number:
VSD791FT50KN
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
10730x3705x4050
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Applicable Industries:
Building Material Shops, Construction works
Condition:
New
Brand Name:
VOSTOSUN
Place of Origin:
Shanghai, China
Type:
Front Loader
Moving Type:
Wheel Loader
Certification:
CE ISO
Hydraulic Pump Brand:
-
Hydraulic Valve Brand:
-
Engine Brand:
-
UNIQUE SELLING POINT:
-
Application:
mining like marble and granite mine
Operating weight:
52000kg
Max. Load (fork from goud ≤1600mm):
50000kg
Load center distance:
900mm
Max.lifting height:
3550mm
Fork size:
1800x280x155mm
Wheel base:
4655mm
Min. Turn radius:
10030mm
10030:
276kw
Color:
Customer's Requiement
Supply Ability
Supply Ability:
30 Set/Sets per Month Marble quarry diesel 50 ton forklift front loader for sale
Packaging & Delivery
Packaging Details
Marble quarry diesel 50 ton forklift front loader for sale: Small model will be put into standard container, big model will be in nude packing, spart parts will be put into wooden box, or as customer specific requirements
Port
Shanghai port, Qingdao port or as request
Product Description

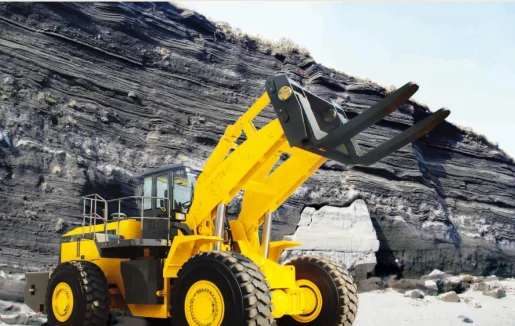

Wheel forklift loader-Marble quarry diesel 50 ton forklift front loader for sale

According the advanced stone mining and processing situation, we procuced the wheel forlift loader. Wheel forklift loader is the first domestic development, in line with the development of stone shovel, shipment and stacking operation condition of the forklift loader, is the founder, the founder and leader in the stone industry.

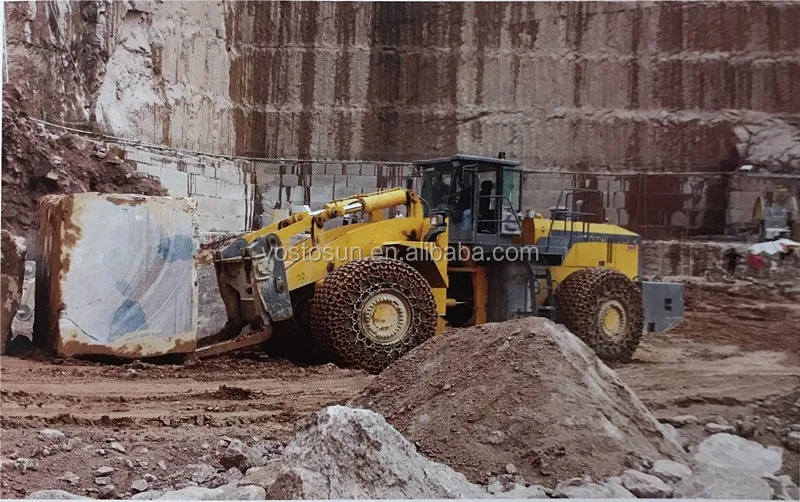

It also called stone forklift wheel loader. It can transport, moving, loading, stacking big materials like stone block, container etc. in tough working condition. Stone block handler is used in quarry and storage yard to carry stone blocks also containers or other materials. It is easy to operate, and wheel loader driver can drive it.

Main Features

1. Top grade supercharged intercooled engine with power of 375HP ensures high torque reserve and super high power.
2. The telehandler is designed with helical gears and a dead axle type transmission box supporting electro-hydraulic gear shifting. This provides high transmission efficiency and low operation noise. The design of four forward gears and three reverse gears, coupled with kickdown function, effectively improves operation efficiency.
3. The telescopic handler is fitted with our patented drive axle which comes with a built-in wet type brake. Thus, it offers high loading capacity, and a single axle supports maximum static load up to 110,000kg. Also, the braking torque is very high. An independent cooling system is available to guarantee the safety and reliability of the entire telehandler.
4. Imported braking elements, coupled with our patented hydraulic, dual-pipeline service brake and parking brake systems, makes sure the engineering vehicle has safe and reliable braking. This makes the telescopic handler safe while working under heavy duty conditions.
5. The innovative eight-bar linkage mechanism allows the working device to deliver stable lifting, and meanwhile, provides telehandler operators with wide viewing angle. The vertical type boom cylinder greatly improves lifting capacity. The telescopic boom in box-style structure and constructed using dual-layer metal plates, provides strong torsion resistance and further improves lifting capacity.
6. The front axle of the telescopic handler is equipped with 29.5R29 radial tires of three star load rating, and the maximum loading of a single tire is 51 ton. The rear axle is fitted with 29.5R29 radial tires of two star load rating, and the maximum loading of a single tire is 45 ton. These allows the telescopic material handler to cope with various complicated working conditions.
7. Due to super long wheel base, and steel structured framework, the telehandler offers advantages such as greater stability and improved structural strength. Additionally, it employs heavy duty cylindrical roller bearings for framework hinge joint, which allows for reliable connection of large-span frames and strong connection strength.
8. The pilot control system and the hydraulic steering system with flow amplifier makes the telehandler flexible and convenient in operation.
9. With patented intelligent control system, the telescopic handler supports functions such as operation status real-time monitoring, GPS positioning, as well as remote monitoring and failure diagnosis.

Specifications
Description
VSD761FT28KN
VSD771FT32KN
VSD791FT50KN
Unit
Operating weight
28000
32400
52000
kg
Max. Load (fork from goud ≤1600mm)
28000
32000
50000
kg
Load center distance
600
900
900
mm
Max.lifting height
3200
3500
3550
mm
Fork size
1500x240x120
1500x220x130
1800x280x155
mm
Fork spacing adjustment range
270~835
-
-
mm
Overall size (L x W x H)
8350x3050x3525
9290x3050x3590
10730x3705x4050
mm
Min. Turn radius
8000
8500
10030
mm
Min. Ground clearance
400
480
465
mm
Wheel base
3950
4200
4655
mm
Departure angle
20
20
22
°
Max. Tractive force
kN
Travel speed
Forward I Gear Shift
0~10
0~10.8
0~6/0~10
Km/h
Forward II Gear Shift
0~35
0~30.4
0~22/0~32
Km/h
Reverse I Gear Shift
0~13
0~12
0~6/0~10/0~22
Km/h
Total cycling time
≤17.7
≤19
-
s
Engine power
178
178
276
kw
Fuel tank capacity
220
220
450
L
Hydraulic oil tank capacity
270
270
320
L
Spare Parts Details

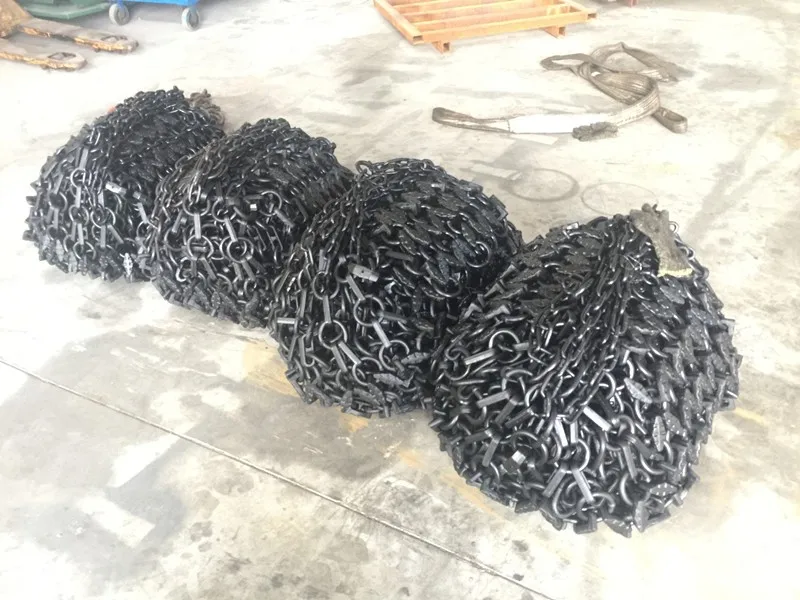

Wheel Chain


Buckets


Forks

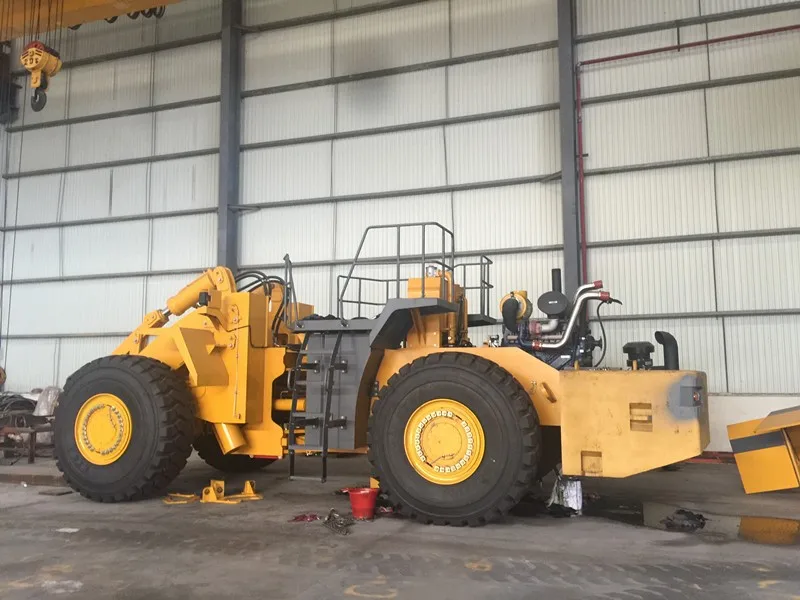

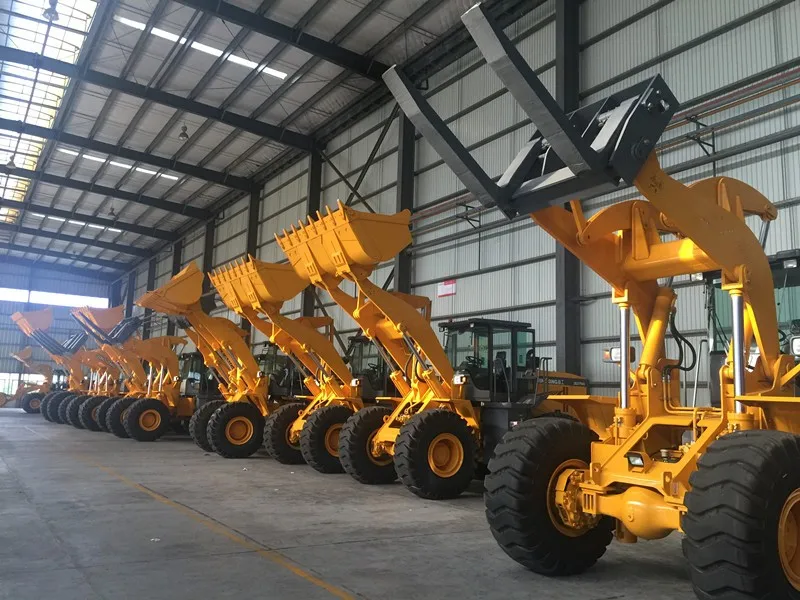

Manufacturing Site
Our Service

Services and guarantee system

We has offices all over the country, and adopts network services, it also sends permanent after-sales-service technician to the offices so as to provide prompt and timely after-sales-service for each customer and provide technical support to the customer in addition.
The services staff will arrive at the site for forklift delivery. With warranty time, we provide 4 times after-sales-service free for labour cost.

Training

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.
