Stone vibrating grizzly screen feeder for sale

FOB Reference Price:Get Latest Price
$400.00 - $985.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZSW-4900x1300
Power(W):
22KW
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
Mining Industry,building,quarry
Power Type:
Electric
Capacity(t/h):
400-600 T/H
Place of Origin:
Shanghai, China
Brand Name:
VOSTOSUN
Dimension(L*W*H):
4980X2580X2083mm
Weight:
8760 kg
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Funnel size(mm):
4900x1300
Max feed size (mm):
750
Obliquity of material trough(°):
400-600
Product name:
Stone vibrating feeder
Type:
ZSW type
Color:
as customer request
Installation:
Under Engineer's Guide
Material:
Carbon Steel Q235
Function:
Feeding stone
Supply Ability
Supply Ability:
65 Set/Sets per Month Stone vibrating grizzly screen feeder for sale
Packaging & Delivery
Packaging Details
Stone vibrating grizzly screen feeder for sale: Standard packing, spare parts will put into the wooden cases then transport by the container, big model will be nude packing. Each machine and spare parts will have a special nameplate in customer local language
Port
Qingdao port, Shanghai port, Ningbo port or as request
Product Description

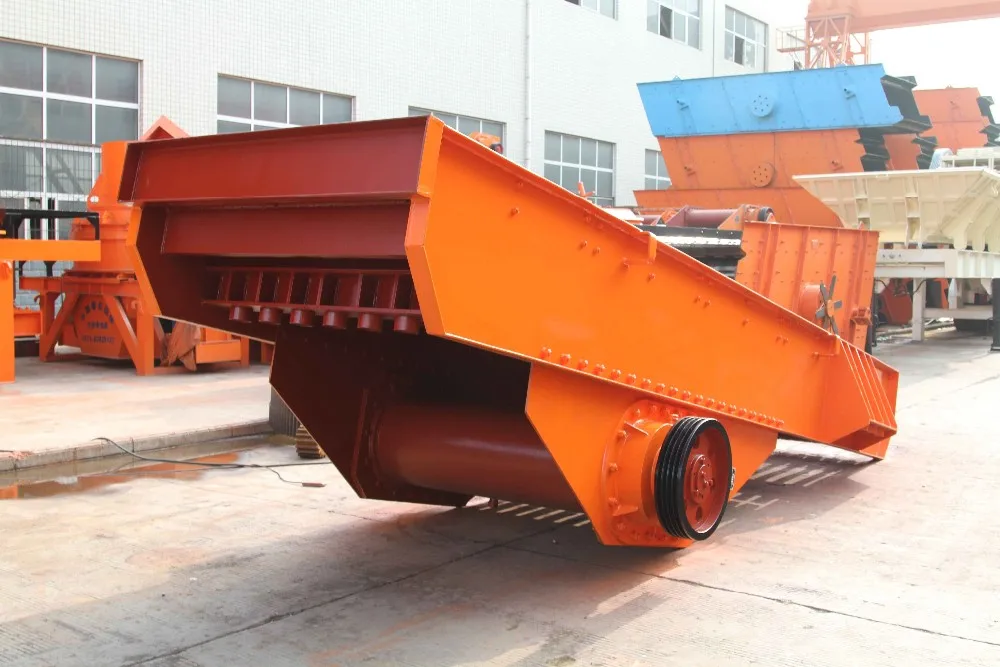

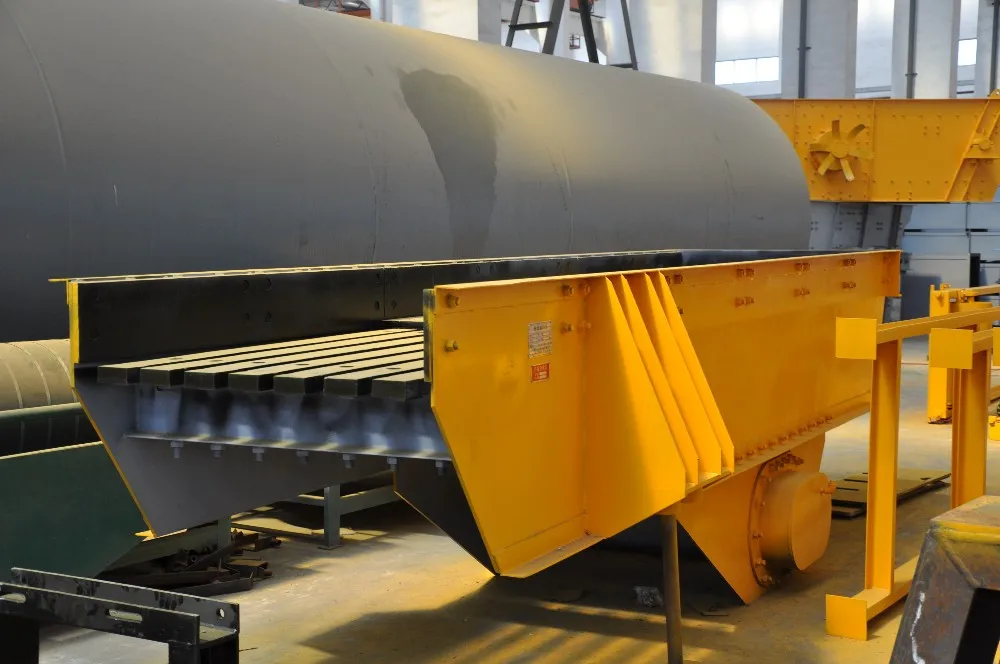

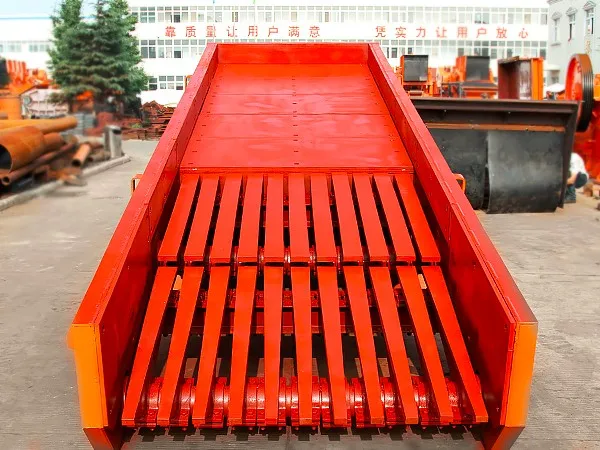

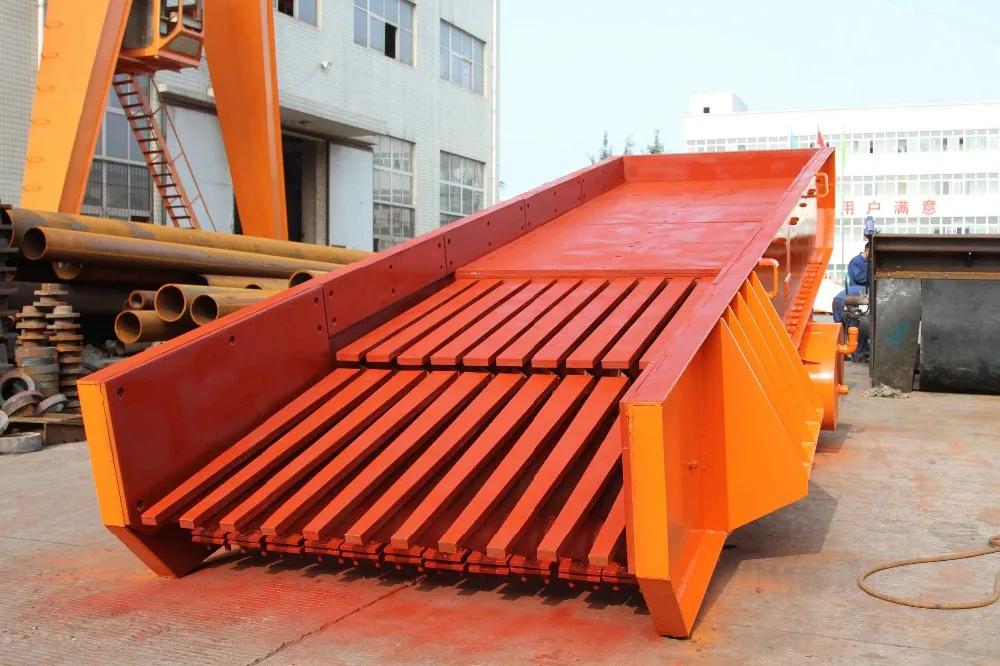

Stone vibrating grizzly screen feeder for sale

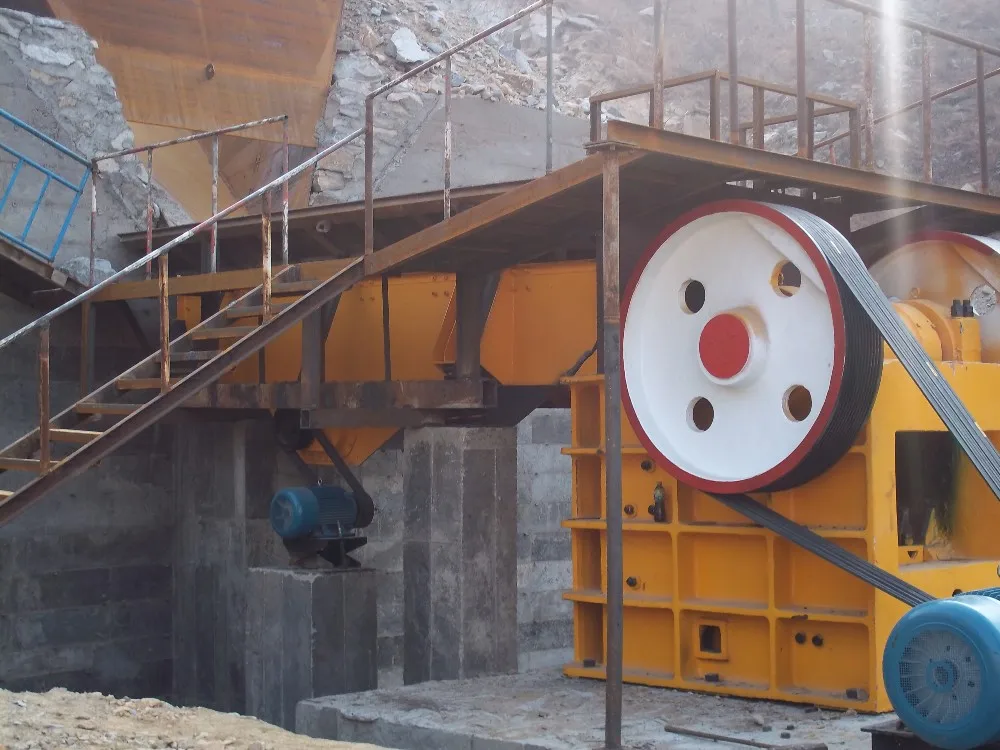

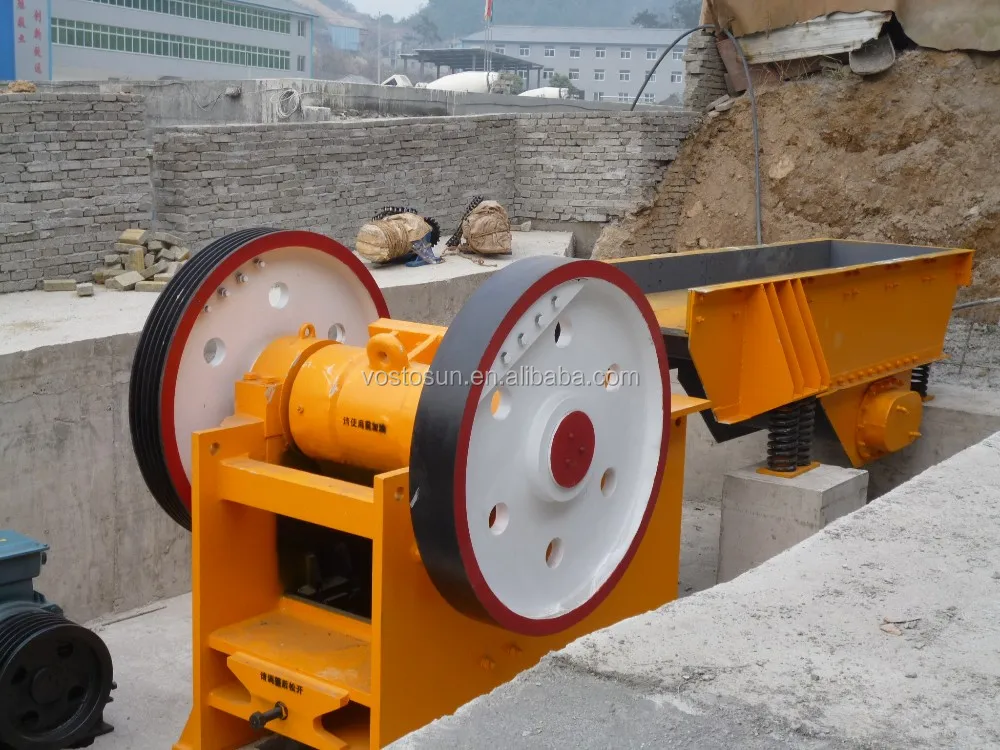

The China vibrating feeder can send the massive and granular materials to the receiving device equably from the storage. It can feed the crusher uniformly in the sand product line to protect the port of the crusher from being blocked. The vibratory feeder applies the characteristics of the exciter of the double eccentric shaft to ensure that the equipment can bear the impacting force taken by the falling big materials.

Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.

Main Features

Steady vibrating, reliable working and long life.
Adjustable vibrating. The rate of flow can be changed and controlled at any time, which makes the adjusting convenient and steady.
Little noise and low energy consumption.
Simple structure, light weight and small size.
Easy to maintain.
Able to protect the feeder machine from pollution of dust when using the enclosed structure.

Working Principle

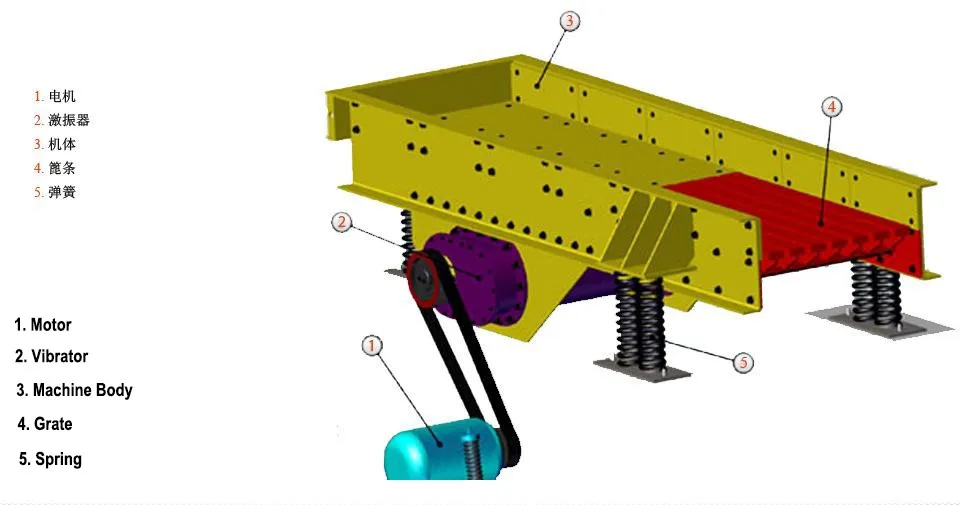

When the vibrating grizzly feeder is working, the engine makes the eccentric block of the vibration exciter through the V-belt. The running eccentric shaft stimulates the screen box to make some degrees of circular motion with strong centrifugal force. The materials on the slant screen make some constant throwing motion by the impacting from the screen box. During the process of the materials meeting the screen, some particles smaller than the sieve pit will go through the sieve. Thus, the classifying can be realized.

Technical Parameters
Model
Funnel size(mm)
Max feed size (mm)
Capacity (t/h)
Motor power (kw)
Obliquity of material trough(°)
Weight (kg)
Overall dimension (L×W×H) (mm)
GZD-650×3000
650×3000
300
80
1.1x2
10
2798
2300x1360x780
GZD-750×3000
750×3000
350
100
1.1x2
10
3260
2500x1460x780
GZD-850×3000
850×3000
400
120
3x2
10
3607
3110x1800x1600
GZD-1000×3600
1000×3600
500
150
5.5x2
10
3895
3850x1950x1630
GZD-1100×4200
1100×4200
580
240
5.5x2
10
4170
4400x2050x1660
GZD-1300x4900
1300×4900
650
450
7.5x2
10
5200
5200x2350x1750
GZD-1500×5600
1500×5600
1050
450-800
11x2
10
7500
5700x2000x1750
Model
Funnel size(mm)
Max feed size (mm)
Capacity (t/h)
Motor power (kw)
Obliquity of material trough(°)
Weight (kg)
Overall dimension (L×W×H) (mm)
ZSW-380×95
3800×960
500
100-160
11
0
4832
3920x1640x1320
ZSW-490x110
4900×1100
630
150-320
15
0
6647
4980x1830x1320
ZSW-490x130
4900×1300
750
400-600
22
0
8760
4980x2580x2083
ZSW-600x130
6000×1300
750
400-600
22
0
9250
6082x2580x2083
ZSW-600x150
6000×1500
800
500-800
30
0
10190
6086x2662x1912
ZSW-600x180
6000×1800
800
700-1000
37
0
13750
6310x3262x2230
Maintenance

The feeder uses the thin oil splashing to lubricate. The lubricating oil should depend on the place and temperature, mainly using the gear oil.
The height of the thin oil in the vibration exciter should be higher than the height of oil leveler. The thin oil must be updated every 3 to 6 month. The oil box, ball track and the appearance of the gears should be cleaned by clean oil when changing the oil.
The operators should be trained on the safety techniques.
When the machine is working, no one is allowed to stand by it or touch, adjust, clean or repair it.
